Annotations

Example

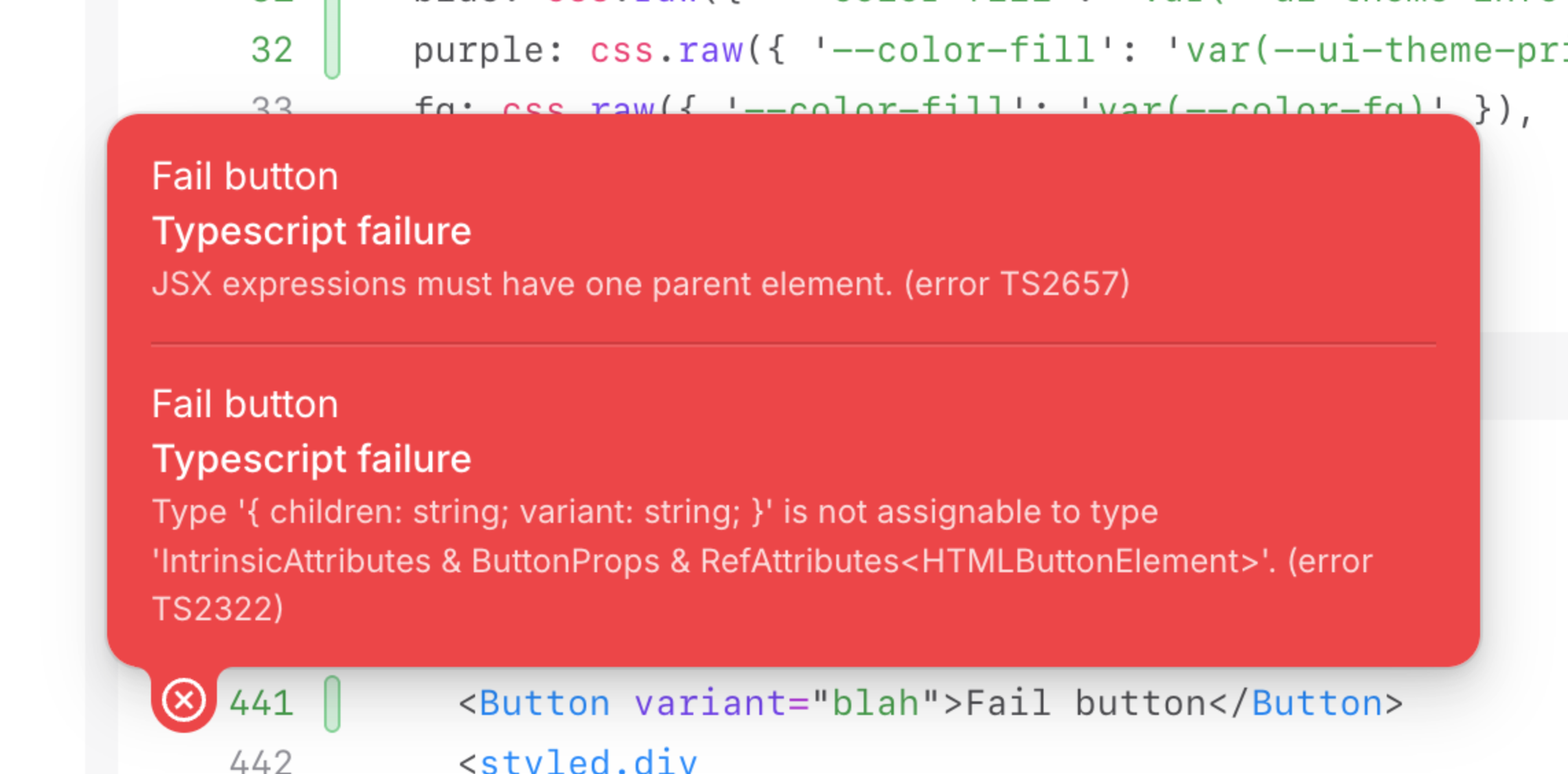

Annotations allow you to attach markers to the top level of a branch, or to specific lines in files. This can be useful for flagging linter issues, type failures, todos, or even attaching build artifacts.

How it works

If a filename or line aren’t provided, annotations will only show in the Annotations sidebar. Otherwise, specifying a filename and line number will attach the annotation to that specific line in the file.

import { annotate } from 'pierre';

export default async () => {
  annotate({
    icon: Icons.CIFailed,
    color: 'red',
    filename: filepath,
    line: parseInt(lineNo),
    label: 'Typescript failure',
    description: `${errorMessage} (${errorCode})`,
  });
};

export interface Annotation {
  // Themeable color
  color?: Color;

  // visual icon
  icon?: Icons;

  // title for an annotation
  label?: string;

  // description of the annotaiton
  description?: string;

  // optional filename if attaching to a file
  filename?: string;

  //  optional line number if attaching to a file
  line?: number;

  // link to external asset
  href?: string;
}

Icon and colors come from the Pierre design system. While not open sourced, you can use any color or icon from the system by name. Head to the Pierre Styleguide to find a list of colors and see all available icons.
